Pipes have flanges that attach pipes, valves, pumps, and other components. Among all types of flanges, welding neck flanges are among the strongest and most reliable. The knowledge of these components assists the engineers and the buyers in making wise decisions concerning their use in industries.

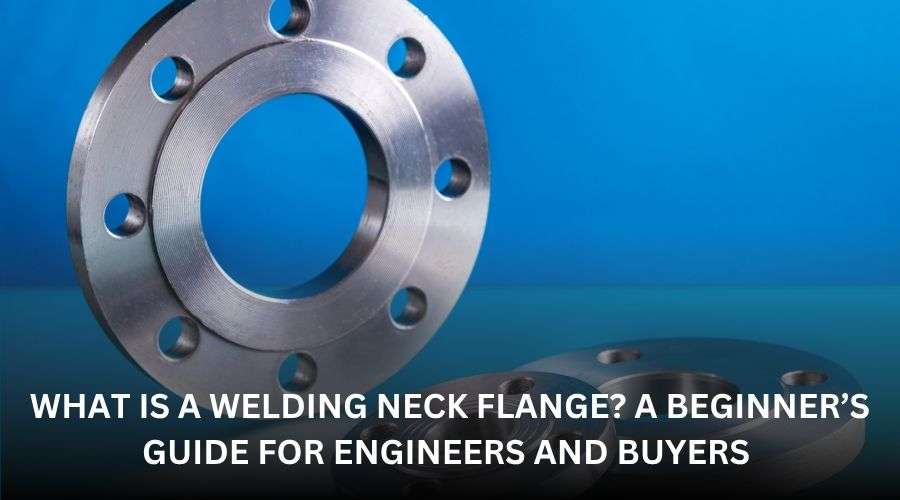

A welding neck flange is a pipe flange that has a long-tapered hub, which is linked to the pipe using butt welding. The hub smoothly transfers the flange thickness to the pipe wall thickness, providing a smooth flow channel for fluids or gases.
The design consists of several components. The flange face is the surface where the two flanges meet. The outer rim has bolt holes that allow fasteners to hold the flanges together. The flange face is joined to the neck section, which then tapers to match the pipe diameter and wall thickness.
This tapered neck distinguishes welding neck flanges from other types of flanges. The progressive change spreads stress evenly, boosting strength and reducing failure risk under stress or extreme heat.
These flanges provide a permanent connection between the pipes or equipment. Installation entails a butt welding of the tapered neck with the end of the pipe. This is the method of welding used to connect the flange and pipe materials into a single unit that resists stress.
The tapered hub design is useful in other ways. It strengthens the point of contact in which stress concentrations usually occur. The gradual change in thickness also avoids sudden transitions, reducing the likelihood of weak points that are easily broken or prone to failure.
Seals are made between the faces of the flanges using gaskets when connecting two flanges. The gasket is pressed into the periphery of the flanges with bolts to avoid leaks. A welding neck design offers high capacities to seal against steep bolt loads, even in difficult conditions, as it does not deform under high load.
Welding neck flanges are used in industrial applications where reliability is essential.
High-Pressure Systems
Oil refineries, chemical processing plants, and power generation plants use high-pressure piping systems. Welded neck flanges handle these pressures, unlike simple flange designs. The structural reinforcement and the permanently welded tie work together to prevent joint failure that could lead to unsafe leaks or system shutdown.
Welding neck flanges have pressure ratings that can reach extremely high levels, depending on the material and size. This makes them suitable for jobs where other flange types would fail or be unsafe.
High-Temperature Applications
Thermal power generation, steam systems, and industrial heating systems subject piping to high temperatures. The increase and decrease in size of materials due to heat put stress on connections. The same design of the welding neck allows for thermal expansion, unlike slip-on or threaded flanges.
A complete-penetration weld between the flange and the pipe may eliminate areas where thermal stress can concentrate. This is an uninterrupted metal flow designed to withstand heating and cooling.
Critical Service Lines
The connections of the systems in which hazardous cargo, products, or materials that should not be contaminated are to be considered as the most reliable ones. Welding neck flanges offer this strength through their sound construction and consistent installation procedure.
Welding neck flanges used in nuclear plants, processing pharmaceutical factories, and food production lines are the most common applications of these flanges, in which the effects of failure would be severe.
Also Read: How to Choose Between Weld and Threaded Flanges
Some advantages make such flanges preferable in certain situations, despite their expense.
Superior Strength
The tapered hub generates robust joints that can withstand high pressure, bending forces, and thermal expansion. This successive change in thickness prevents stress concentration, a weakness in other types of flanges. This strength increases the component service life and minimizes maintenance requirements.
Full-penetration butt welds form a stronger connection than fillet welds with slip-on flanges. A single-welded structure can withstand tensile stress better than a mechanical joint.
Reduced Stress Concentration
Sudden variations in the material's thickness lead to stress concentrations where cracks begin. The gradual taper of the welding neck removes these sharp changes. There is a smooth distribution of stress between the pipe's thick and thin walls.
This design aspect is beneficial in applications that are vibrating, under pressure, or in repetitive thermal cycles. These environments cause fatigue failures in components with any stress-concentration problem.
Improved Flow Features.
The inside diameter of the pipe running through the flange hub is the same. The continuity eliminates flow discontinuities that occur when the bore size abruptly changes, as with other types of flanges. Less turbulence in the flow implies lower pressure drop and more efficient operation.
The improved flow properties are of use in applications that involve pumping viscous fluids or precise flow rates. Less turbulence will also reduce erosion and corrosion at the flange connection.
Long Service Life
The high construction, stress distribution, and permanent character give the systems a long service life. The use of properly installed welding neck flanges can last for decades without the need to replace them. Such durability warrants increased costs at the start of life in hard conditions.
There are a number of factors influencing the procurement decisions of welding neck flanges.
Accurate Specifications
Buyers will have to state the pipe sizes, pressure type, facing type, material grade, and standards. Incomplete specifications lead to incorrect flanges, resulting in project delays and increased costs.
Consulting with engineers or seasoned suppliers helps ensure specifications align with applications.
Quality and Certification
The flanges needed are of industrial-grade quality. Material test reports, dimensional certification, and pressure test documents ensure compliance. These are the documents given out by reputable manufacturers alongside the orders.
Poorly certified, cheaply imported flanges pose risks in high-performance areas. Product checking is the reason to pay a little more to have high-quality products.
Lead Times and Availability
Most common stock items are available in standard sizes, pre-stocked at distributors, and delivered on demand. Manufacturing time can take several weeks or months, depending on the use of special materials, large sizes, or high-pressure classes.
Supplier Selection
Established suppliers with years of industry experience would offer good technical advice on selling, not just selling products. They assist with checking specifications, recommending an option when necessary, and troubleshooting problems.
SghPipes is a trusted supplier of premium welding neck flanges, offering high-quality, durable products that meet the rigorous standards required for high-pressure, high-temperature, and critical service applications.
Establishing a trusting relationship with suppliers will ease the rebuy process and serve as a source of technical inquiries.
When welding neck flanges are properly installed, they will work to specification.
Qualified welders working in acceptable procedures produce quality welds. Weld defects will be avoided through proper fit-up with appropriate gapping, spacing, and alignment. Certain materials or thicknesses may be subjected to post-weld heat treatment to alleviate inherent stress.
The welding test is non-destructive. Internal defects that cannot be seen externally can be detected by using radiographic or ultrasonic inspection. This verification is necessary before pressurizing a system with critical uses.
Proper choice of gaskets and tightening of bolts result in leak-free seals. Determining torque specifications would remove the possibility of gasket or flange damage and produce even compression.
Welding neck flanges offer high-quality, resilient piping connections. The tapered hub structure prevents stress and forms strong joints under high pressure, high temperature, and adverse service conditions.
Knowledge of their structure, benefits, constraints, and the selection of the right flanges is relevant to assist engineers in defining the right flanges to use in their work. The buyers enjoy the advantage of knowing what they can buy, the standards, and the quality control requirements.
